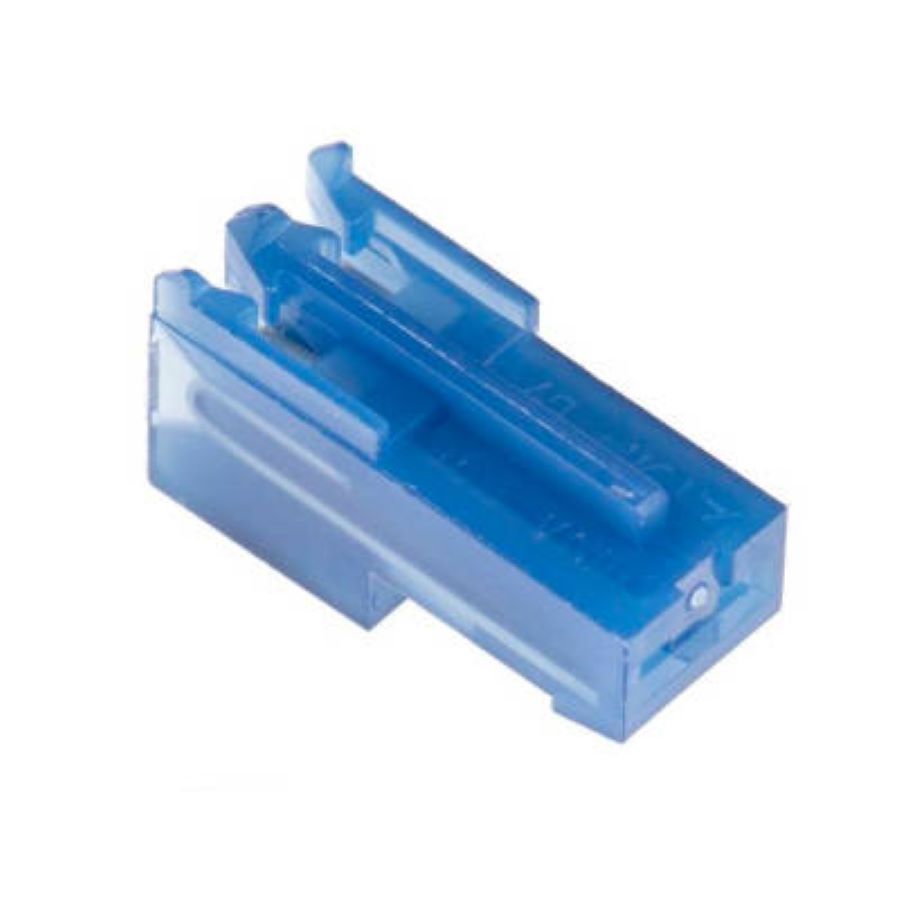

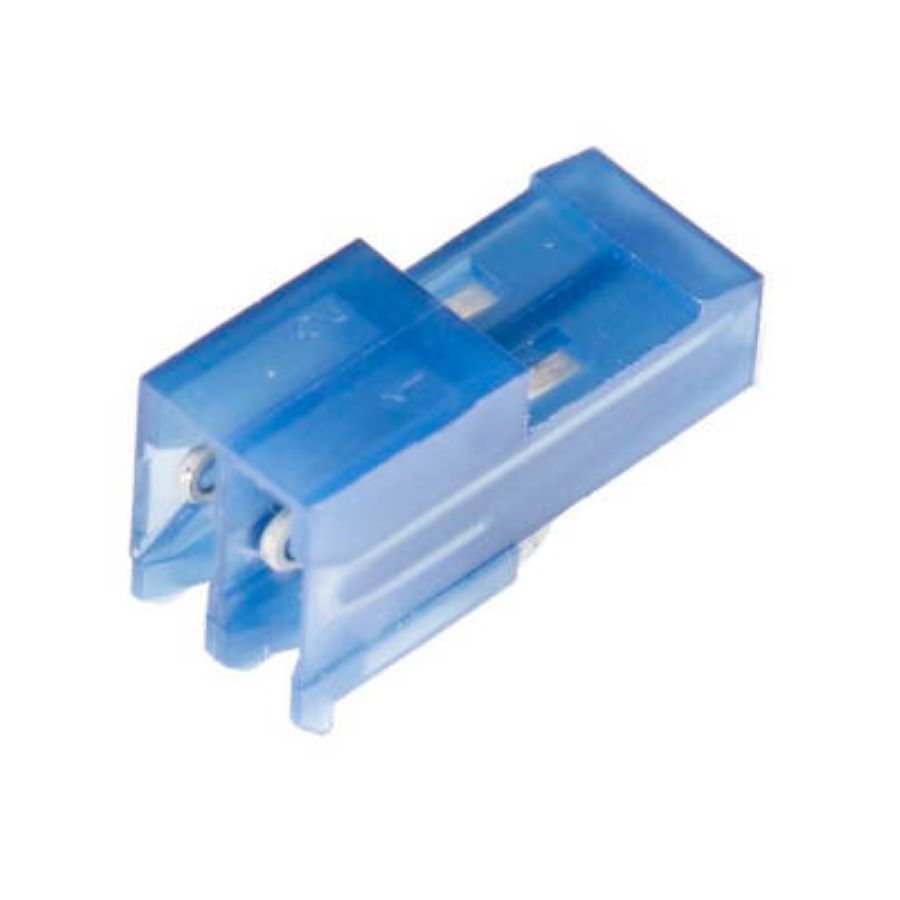

3-640442-2 TE Connectivity | PCBX Electronics

3-640442-2

Manufacturer:

TE Connectivity

Mfr.Part #:

3-640442-2

Datasheet:

Description:

Headers and Wire Housings Wire Connector, Receptacle, Socket Number of Positions:2 Pitch:2.54 mm

Parameter	Value
Length	5.08 mm
Width	6.985 mm
Termination	IDC, IDT
Max Operating Temperature	105 °C
Min Operating Temperature	-55 °C
Voltage Rating (AC)	250 V
Number of Pins	2
Height	6.99 mm
Packaging	Bulk
Voltage Rating	250 V
Depth	6.99 mm
Lead Free	Lead Free
Radiation Hardening	No
RoHS	Compliant
Lead Pitch	2.54 mm
REACH SVHC	No SVHC
Contact Plating	Tin
Contact Material(Contact Finish)	CuSn
Pitch	2.54 mm
Current Rating	5 A
Flammability Rating	UL94V-2
Approvals	CSA
Orientation	Right Angle
Operating Supply Voltage	250 V
Lifecycle Status	Production (Last Updated: 1 week ago)
Color	Blue
Gender	Female
Shielding	Unshielded
Number of Contacts	2
ELV	Compliant
Connector Type	Connector, Receptacle, Socket
Wire/Cable Gauge	26 AWG
Number of Positions	2
Number of Rows	1
Housing Material	Nylon
Fastening Type	Ramp
Connector System	Wire-to-Board
Contact Resistance	6 mΩ
Max Voltage Rating (AC)	250 V
Contact Current Rating	5 A
Housing Color	Blue, White
Insulation Diameter	1.52 mm
shrouded	No
Plating Thickness	5.08 µm
Contact Gender	Female
Underplate Material	Nickel
Manufacturer Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Sealable	No
Contact Retention	With
Mating Retention	With
Mating Alignment	Without
